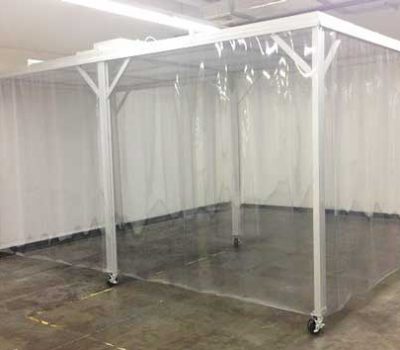

Clean Room Depot’s AS Series Softwall Clean Room System provides a wide variety of enclosure solution to create class 10 (ISO 4) – 100,000 (ISO 8) clean rooms.
The AS frame system is designed for fast construction and can be easy customized. Enclosures can be fitted with soft vinyl panels as well being outfitted with various types of 1/4″ rigid panels.
The AS Series is available in many standard sizes and options.
Width O.D.-1 Range: 52-246 in
Length O.D.-2 Range: 52-302 in
Inside Height View: 96 in
Overall Height: 106 in
Required Cleanliness Class/ISO Certification:
Your clean room can be customized using the following options and components. We also stock a full line of accessories for you.
- Framing – Swinging doors, sliding doors, vents, modular ceiling systems, and powder coated.
- ULPA Filters (class 10)
- Anti-static Curtain Walls
- Strip, Bi-folding and Dual-flex Doors
- Internal or External Gown Rooms
- Ionization Grids or Bars
- Flow thru Lighting
- Comfort Cooling Package
- Magnehelic Gauge to Measure Filter Static Pressure
- Optional Voltage for Lights and HEPA Filters: 230 Volt/277 Volt
- 10″ Diameter Duct on Fan Filters AC Attachment
- Heavy Duty Swivel Locking Casters
- Flexible PVC Curtains
- Rigid Panel Inserts
- Class 100 light fixtures
- Class 1000-100000 light fixtures
- Flow thru for class 10 rooms or smaller
- Tear drop
The rooms are freestanding and fabricated of anodized clear coat aluminum 2 1/8″ x 2 1/8″ extrusion. Frame can be connected with Compression Latch or Bolt Together to ensure a strong structural connection.
Consists of 1″ x 1″ clear anodized aluminum tube with heavy – duty pre-gasketed 2″ T – bar cross members to create 2′ x 4′ openings for ceiling components.
2′ x 4′ panels manufactured of 5/8″ high density formed fiber core covered with a white vinyl membrane. Tiles are durable, easy to clean and offer both humidity resistance and high light reflection.
Shall be 40 mil clear solid vinyl curtain hung to an appropriate height around perimeter of clean room to maintain proper pressurization. Various types of entry/exit systems are offered to best suit personnel/product flow. (overlaps, strips, bi-folding or dual-flex self closing doors.) Curtains are easily mounted to aluminum frame by mounting tracks. Simply hook curtains on to track and close the continuous cover. This sleek non-corrosive design creates a tight seal to frame work that prevents contamination from entering the clean room.
There are several types of clean room grade light fixtures used in our softwalls. The type depends on cleanliness level, size and ceiling plan of room design.
Filtration provided by Cleanflo-4 fan filter modules. These self contained units have an aluminum housing and features a variable speed control and have a true pleated prefilter. HEPA filter efficiency to be 99.99% at .3 microns and produce 720 to 800 c.f.m. or an average velocity of 90 f.p.m.
A prefabricated wiring system is supplied to speed up installation and reduce wiring costs. Assembly personnel just plug electrical components together so an electrician is only needed to connect power to a single point junction box. What makes this system completely user friendly is a leg mounted control box with separate on/off switches for HEPA filters and light fixtures.
Installation of Clean Room Depot’s aluminum softwall systems are quick and easy with our simple step by step assembly manual, all parts/components are clearly labeled so installation can be complete within hours.
Our Clean Room Experts are Ready to Help Specify and Quote Your Needs.
